SPARE PARTS
Watermaid Pty Ltd repairs and supplies spare parts for the following models:

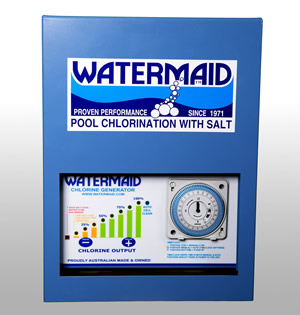

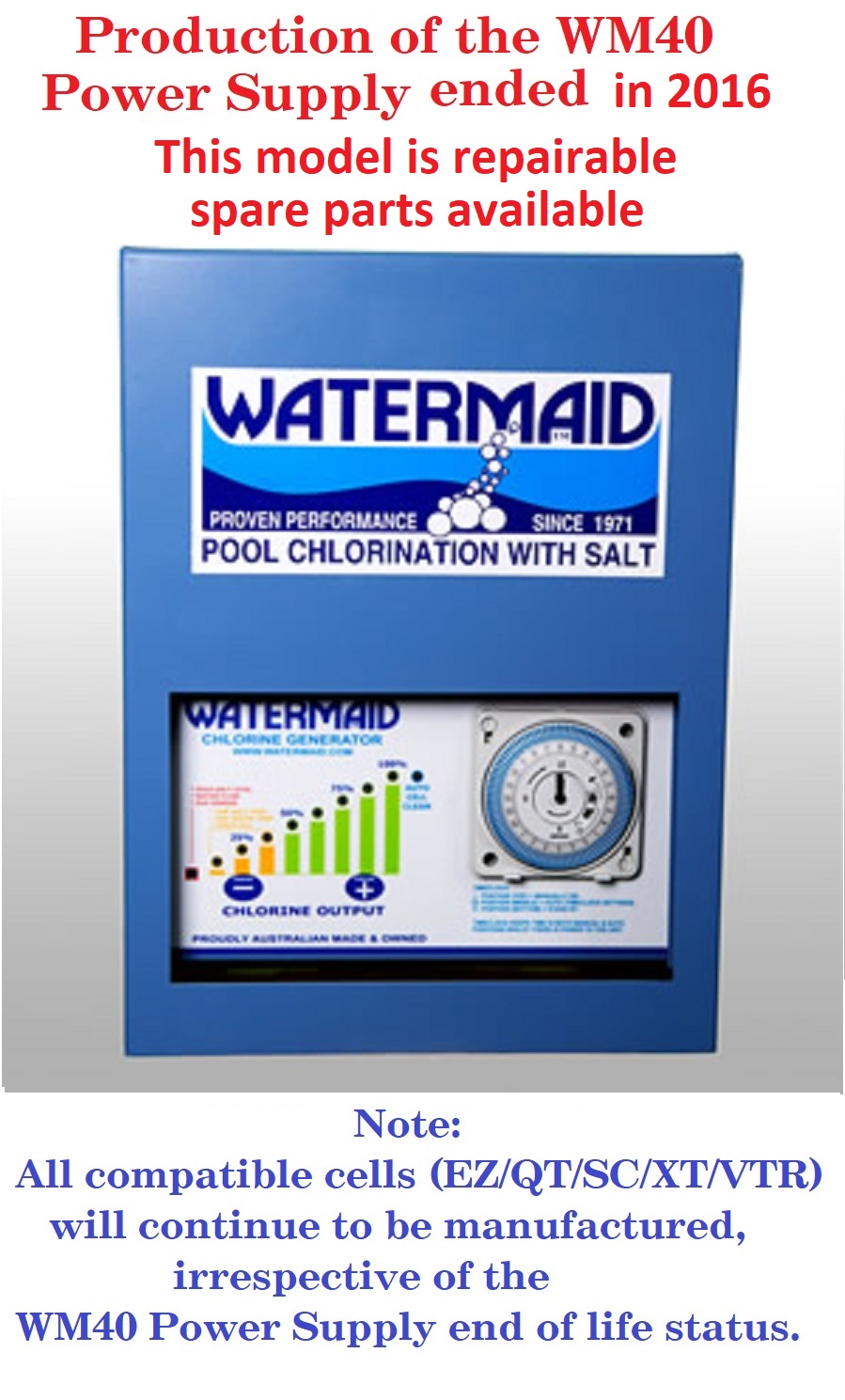

 WM40 Power Supply
- Adjustable chlorine output
- Easy-to-read chlorine production display
- Thermally efficient transformer, capable of operating to 30 amps
- Optional inbuilt analogue time clock
- Operating salt level from 4,000 ppm to SEAWATER, depending on cell model
- Compatible with salt, mineral or mineral-blend pools
- 3 Year FULL warranty on power supply and cell (excluding the time clock)
Connection Types:
There are two connection types between the WM40 power supply and cell:
i) Plug/Socket Connection: the cell cable has a 5 pin plug on the end of it, which plugs into a socket located on the underside of the power supply, or
ii) Junction Box Connection: the cell cable has three small wires, which are screwed into the brass terminals under a black junction box cover (using a screwdriver), located on the underside of the power supply.
The WM40 (Blue box) and WM10 (Grey box) model power supply are repairable and we carry spare parts for these two models. The following older (1971 - 2005) models of Watermaid® power supply are no longer serviceable: WN934A, WQ96A, A3, A4, MKII, MKIV and 400P.
REPLACEMENT CELLS
The QT300, QT400, XT300, XT400, SC300, SC400, EZ300, VTR300 and QT100 Cells are compatible with these models of Watermaid® power supply: WM40, WM10, WN934A, WQ96A, A3, A4, MKII, MKIV and 400P.
Please check the connection type of your cell:
i) 5 pin Plug/Socket Connection: (see description above), or
ii) Junction Box Connection (3 wires): (see description above).
Please note: cells are supplied with a grey cable, although they are not shown in the photos.

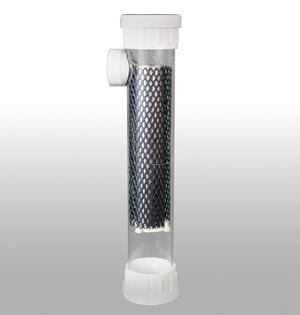

QT300 Cell
- Capacity 90,000 litres
- Operating salt level 6,000 ppm
- Compatible with the WM40 Power Supply
- Full-flow installation
- Suits 40mm (1.5") pipe work
- Electrode length = 20cm
- Casing length = 36cm (measured from thread to thread)

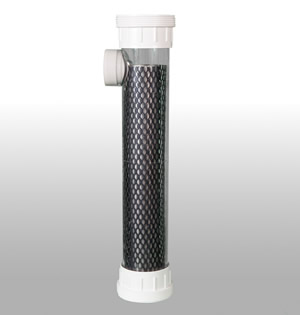

QT400 Cell
- Capacity 150,000 litres
- Operating salt level 4,000 ppm
- Compatible with the WM40 Power supply
- Full-flow installation
- Suits 40mm (1.5") pipe work
- Electrode length = 27cm
- Casing length = 36cm (measured from thread to thread)

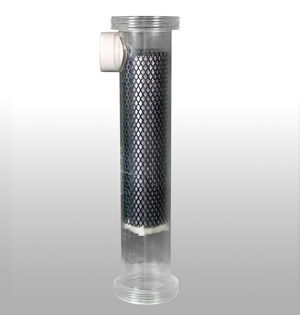

XT300 / SC300 Cell
- Capacity 90,000 litres
- Operating salt level 6,000 ppm
- Compatible with the WM40 Power supply
- Full-flow installation
- Suits 50mm (2") pipe work
- Electrode length = 20cm
- XT300 casing length = 33cm
- SC300 casing length = 36cm
* NOTE: The only difference between the XT300 and SC300 models is the length of the casing, which is measured from clear thread to clear thread.

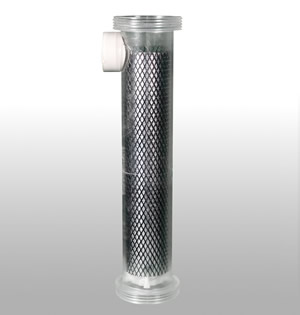

XT400 / SC400 Cell
- Capacity 150,000 litres
- Operating salt level 4,000 ppm
- Compatible with the WM40 Power supply
- Full-flow installation
- Suits 50mm (2") pipe work
- Electrode length = 27cm
- XT400 casing length = 33cm
- SC400 casing length = 36cm
* NOTE: The only difference between the XT400 and SC400 models is the length of the casing, which is measured from clear thread to clear thread.

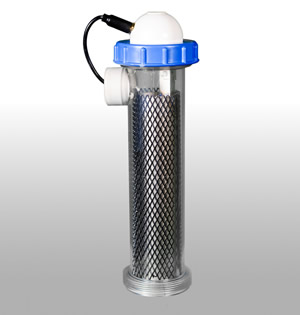

EZ300 Cell
- Capacity 90,000 litres
- Operating salt level 6,000 ppm
- Compatible with the WM40 Power supply
- Removable center electrode for ease of maintenance
- Venturi installation
- T-Piece available in 40mm or 50mm
- Electrode length = 20cm
VTR300 Cell
- Capacity 90,000 litres
- Operating salt level 6,000 ppm
- Compatible with the WM40 Power supply
- Replacement for the EZ300, without the removable electrode
- Venturi installation
- T-Piece available in 40mm or 50mm
- Electrode length = 20cm

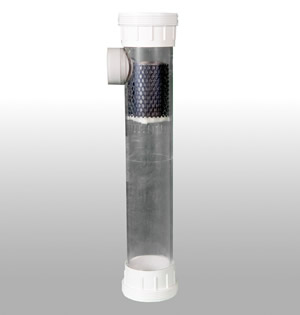

 QT100 Cell
- Capacity 90,000 litres
- Operating salt level 35,000 ppm (*SEAWATER*)
- Compatible with the WM40 Power supply
- Full-flow installation
- Suits 40mm (1.5") pipe work
- Electrode length = 7cm
- Casing length = 36cm (measured from thread to thread)

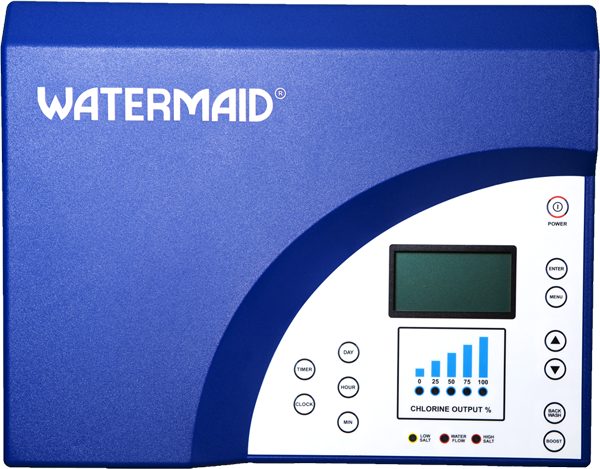

EcoBlend® Power Supply
- Self-cleaning reverse-polarity
- Salt, mineral or mineral-blend compatible
- Battery-backed clock with 6 inbuilt timers
- Boost / superchlorinate feature
- Safety backwash feature
- Pump protection feature
- Adjustable chlorine output
- Optional ultra low salt model, operates as low as 1000 ppm salt
- 3 operating modes - Summer/Winter/Spa
- 3 Year Warranty*
EcoBlend® Cell:
There are four different sizes of cell to suit the EcoBlend® power supply. The number next to RP reflects the number of plates in the cell. Please check the barcode label on the EcoBlend® power supply (found on the underside of the unit) for the model information, as this will determine the correct size for a replacement cell. For example: a power supply barcode showing WM44-7|xxxxx will require an RP-7 Cell.

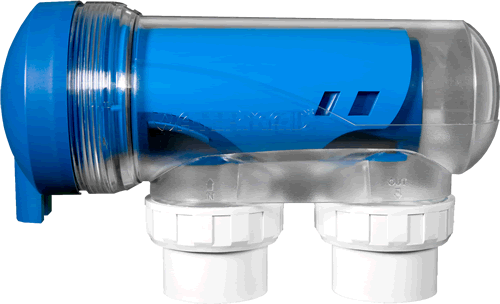

EcoBlend® RP7 Cell
- Output of 25 grams per hour of 100% available chlorine
- Capacity of 100,000L in mild/temperate conditions (or 50,000L in tropical conditions)
- Operating salt level: 3,000 - 4,000 ppm
- Compatible with the EcoBlend® power supply, which uses reverse-polarity technology (the most up-to-date technology available)
EcoBlend® RP9 Cell
- Output of 30 grams per hour of 100% available chlorine
- Capacity of 120,000L in mild/temperate conditions (or 75,000L in tropical conditions)
- Operating salt level: 3,000 - 4,000 ppm
- Compatible with the EcoBlend® power supply, which uses reverse-polarity technology (the most up-to-date technology available)
EcoBlend® RP11 Cell
- Output of 42 grams per hour of 100% available chlorine
- Capacity of 160,000L in mild/temperate conditions (or 100,000L in tropical conditions)
- Operating salt level: 3,000 - 4,000 ppm
- Compatible with the EcoBlend® power supply, which uses reverse-polarity technology (the most up-to-date technology available)
EcoBlend® RP13 Cell
- Output of 30 grams per hour of 100% available chlorine
- Capacity of 100,000L in mild/temperate conditions (or 50,000L in tropical conditions)
- Operating salt level: 1,000 - 2,000 ppm (*Ultra Low Salt*)
- Compatible with the EcoBlend® power supply, which uses reverse-polarity technology (the most up-to-date technology available)
|
